DNK-TV executed the “News Studio for RTRC Atyrau” project on a turnkey basis – from concept development and technical design to equipment supply, installation, commissioning, and staff training. As part of the project, the studio complex was completely modernized, including the lighting system, audio and video equipment, and the hardware-studio unit (HSU), fully integrated into the existing broadcasting infrastructure.
Lighting Solution

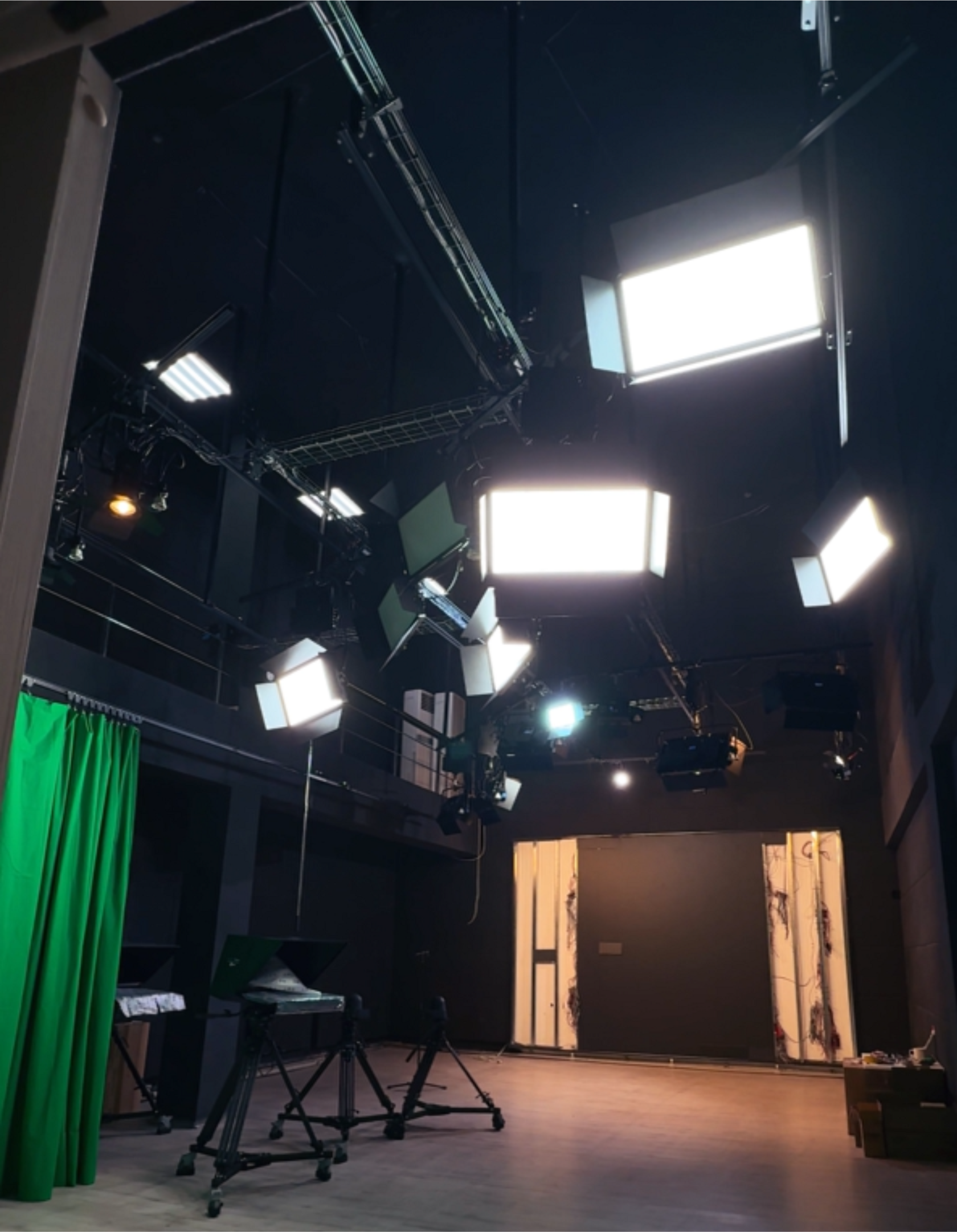

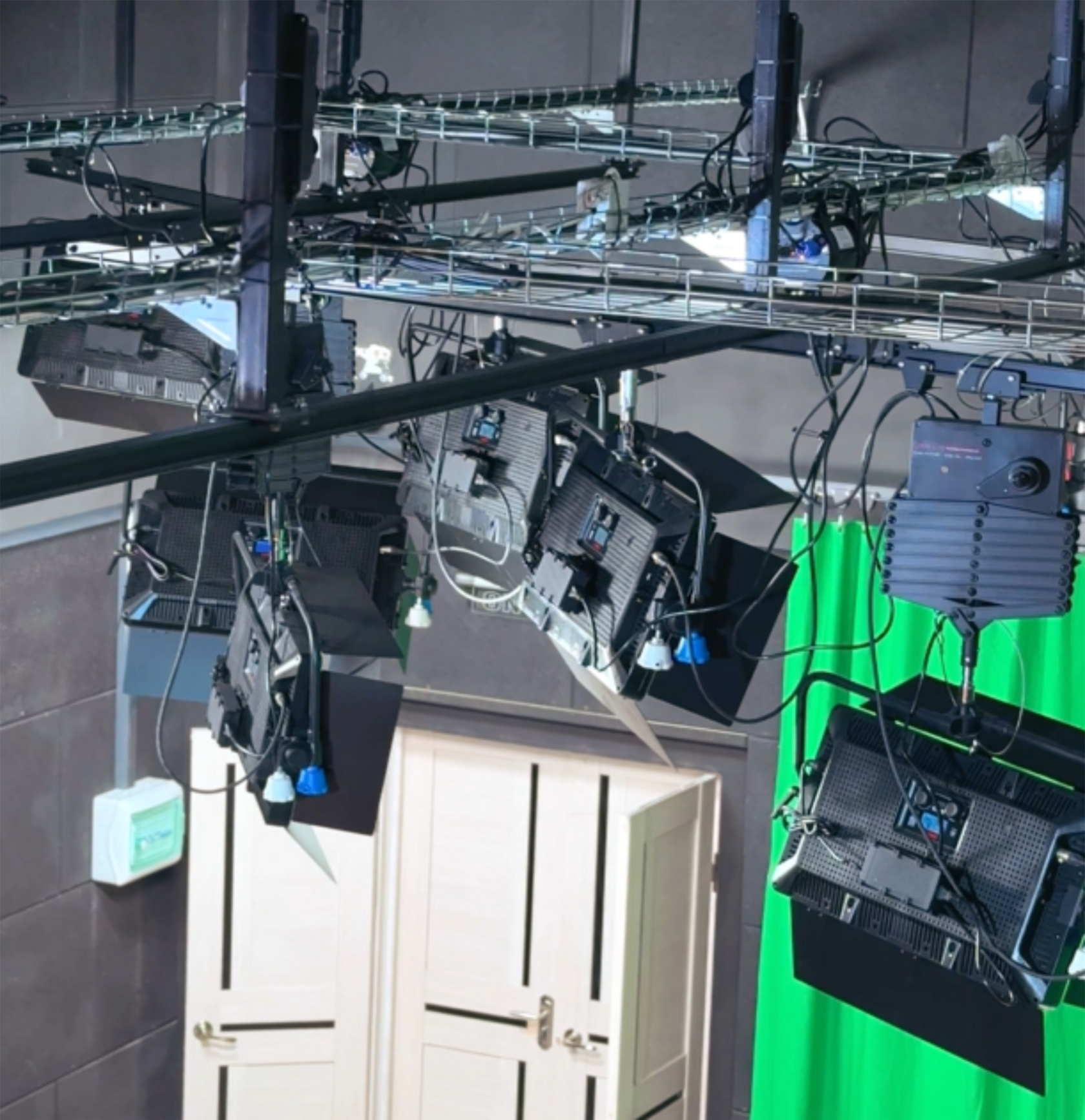

A modern lighting system was designed and implemented for the news studio using LED fixtures: key, fill, and backlight, as well as accent lighting for presenters’ zones and decorative set elements. The suspension and cabling system was carefully planned to provide easy access to the fixtures and flexibility for future set reconfigurations. Lighting control is implemented through a lighting console and DMX infrastructure, allowing rapid switching of lighting scenes for various broadcast formats, including news, interviews, and special projects.
A modern lighting system was designed and implemented for the news studio using LED fixtures: key, fill, and backlight, as well as accent lighting for presenters’ zones and decorative set elements. The suspension and cabling system was carefully planned to provide easy access to the fixtures and flexibility for future set reconfigurations. Lighting control is implemented through a lighting console and DMX infrastructure, allowing rapid switching of lighting scenes for various broadcast formats, including news, interviews, and special projects.
Audio Solution
The studio’s audio system is built around a digital mixing console, wireless microphone systems for presenters and guests, and monitoring systems in both the control room and the studio. Separate channels are provided for broadcast audio, communication with the control room, and backup lines. The acoustic design and audio routing were developed to ensure clear speech and stable microphone operation without feedback, even under typical television studio conditions.
The studio’s audio system is built around a digital mixing console, wireless microphone systems for presenters and guests, and monitoring systems in both the control room and the studio. Separate channels are provided for broadcast audio, communication with the control room, and backup lines. The acoustic design and audio routing were developed to ensure clear speech and stable microphone operation without feedback, even under typical television studio conditions.
Hardware-Studio Unit (HSU) Equipment and Organization

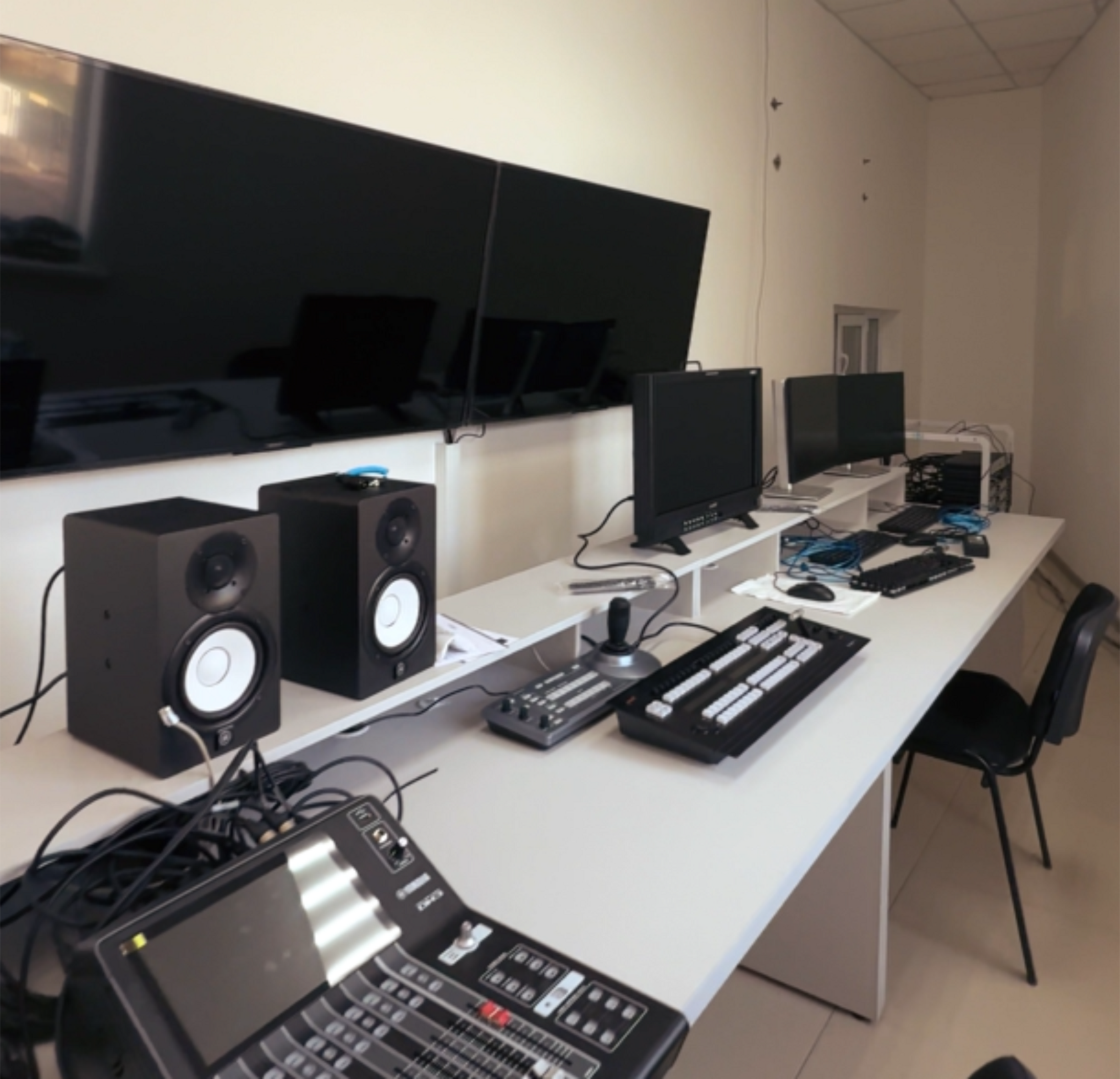

The hardware-studio unit is equipped with all necessary systems for full broadcast control: video mixer, audio mixer, synchronization and utility signal generators, an intercom system for communication between the director, camera operators, and the studio, as well as recording and broadcast monitoring systems. All equipment is housed in rack-mounted enclosures with a carefully planned cabling infrastructure, UPS, and power distribution system. The HSU is fully integrated with RTRC Atyrau’s news and broadcast automation, ensuring stable and predictable on-air operations.
The hardware-studio unit is equipped with all necessary systems for full broadcast control: video mixer, audio mixer, synchronization and utility signal generators, an intercom system for communication between the director, camera operators, and the studio, as well as recording and broadcast monitoring systems. All equipment is housed in rack-mounted enclosures with a carefully planned cabling infrastructure, UPS, and power distribution system. The HSU is fully integrated with RTRC Atyrau’s news and broadcast automation, ensuring stable and predictable on-air operations.
